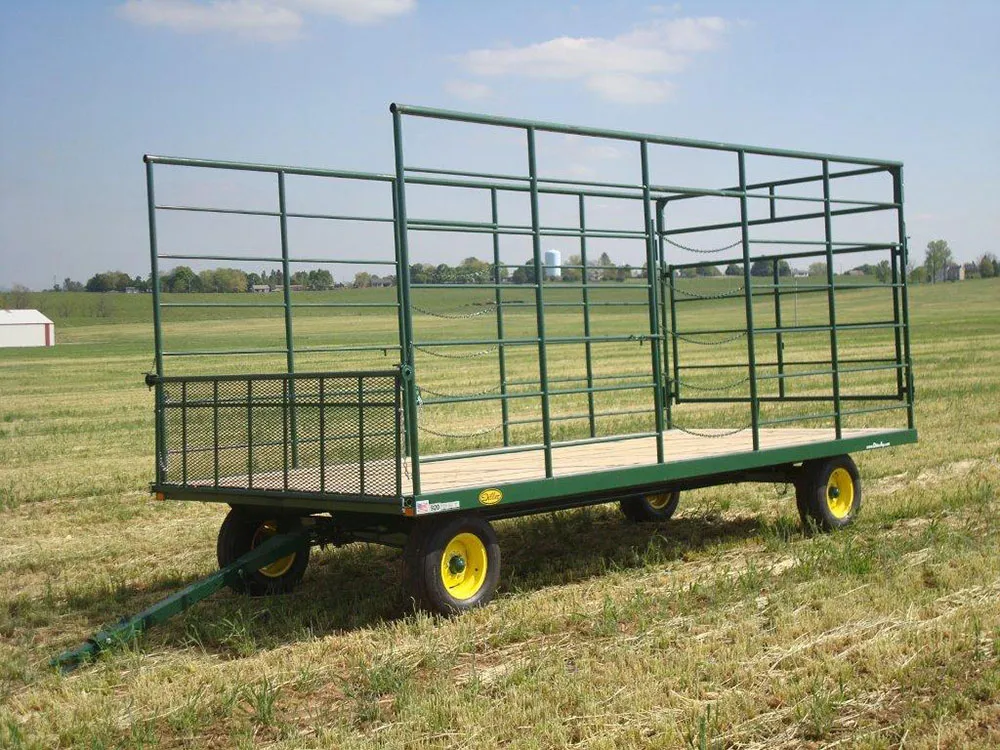

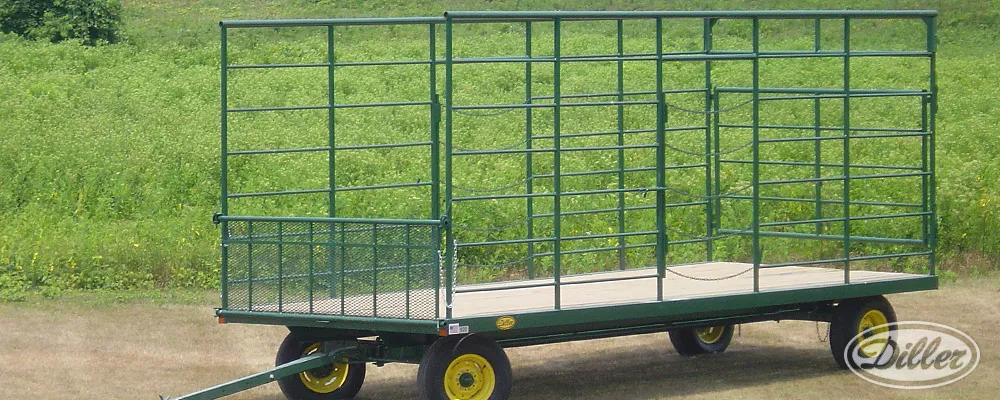

Diller Small Square Bale Wagon
The Diller Small Square Bale Wagon sets the standard for quality, strength, and longevity in hay handling. Constructed entirely from steel—not wood—this heavy-duty kicker wagon is engineered to outlast and outperform traditional bale wagons on the farm.
All-Steel Construction
Structural channel box frame (6″ or 8″) with 3″ crossmembers and 12-gauge formed steel sides for unmatched durability and stability.
Durable Decking
2″ x 8″ pressure-treated lumber flooring secured with heavy-duty anchors for long service life.

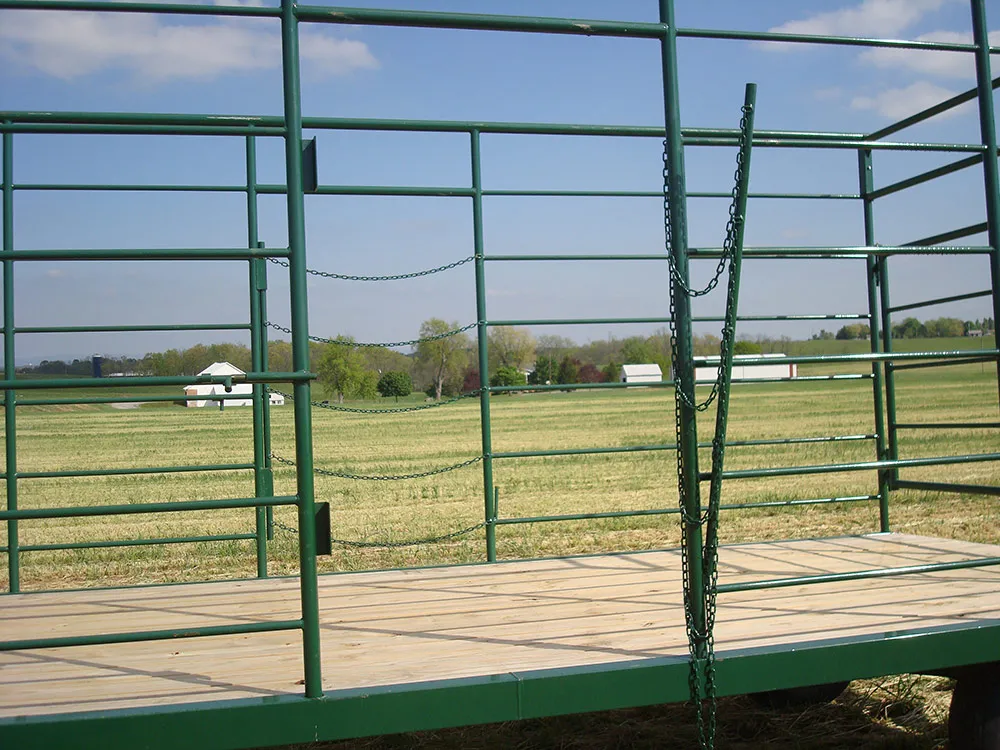

Rugged Sideracks

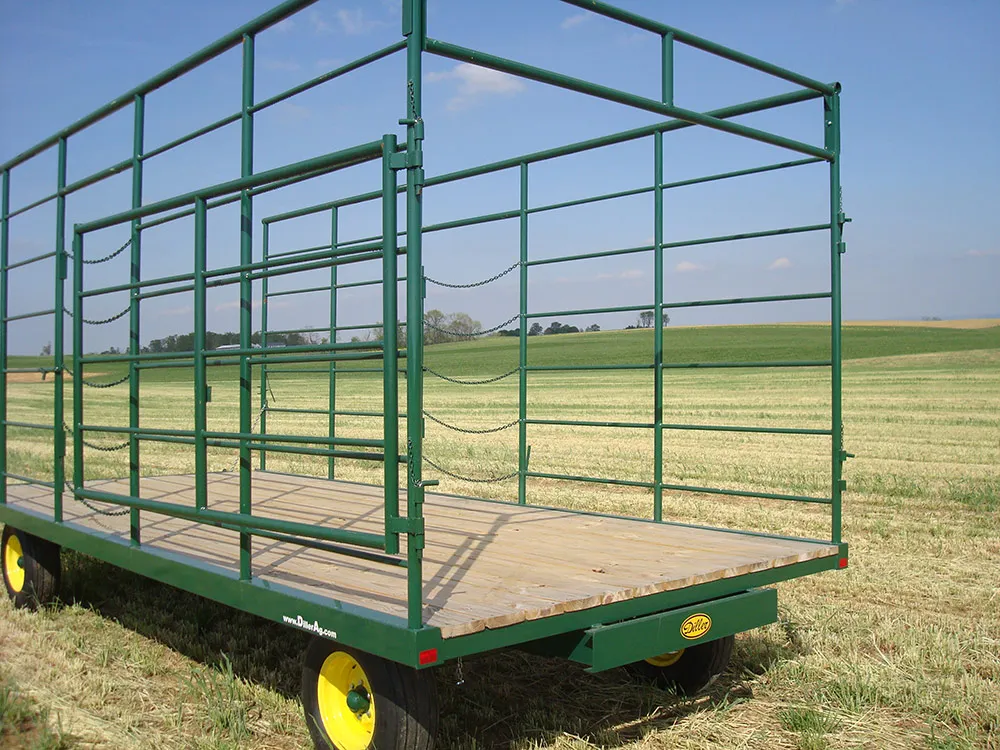

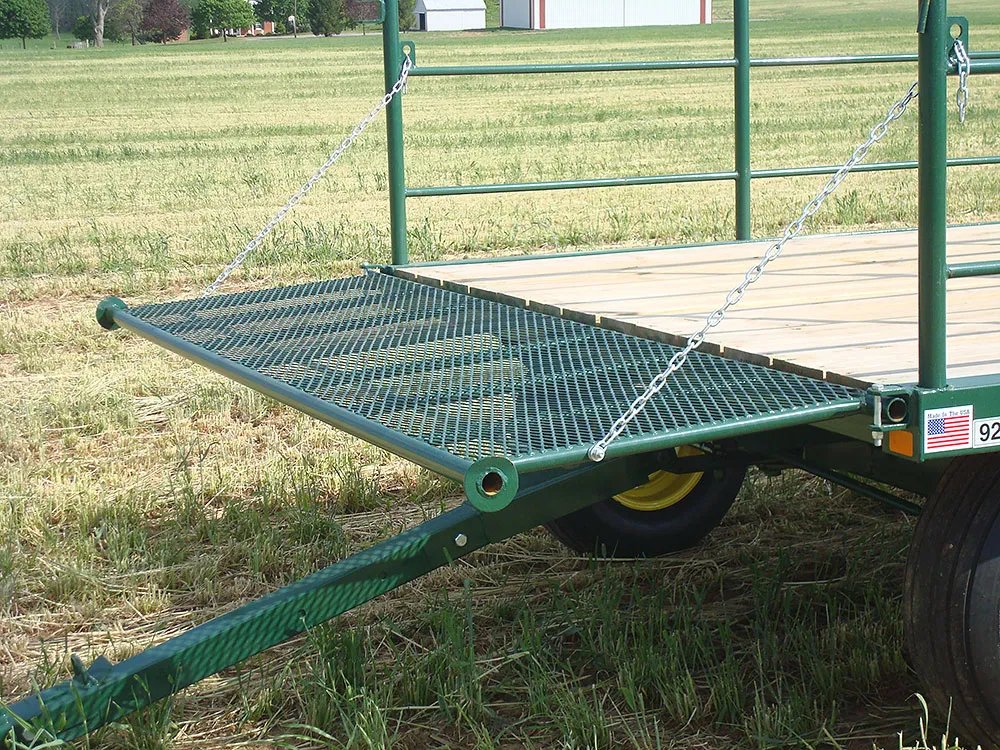

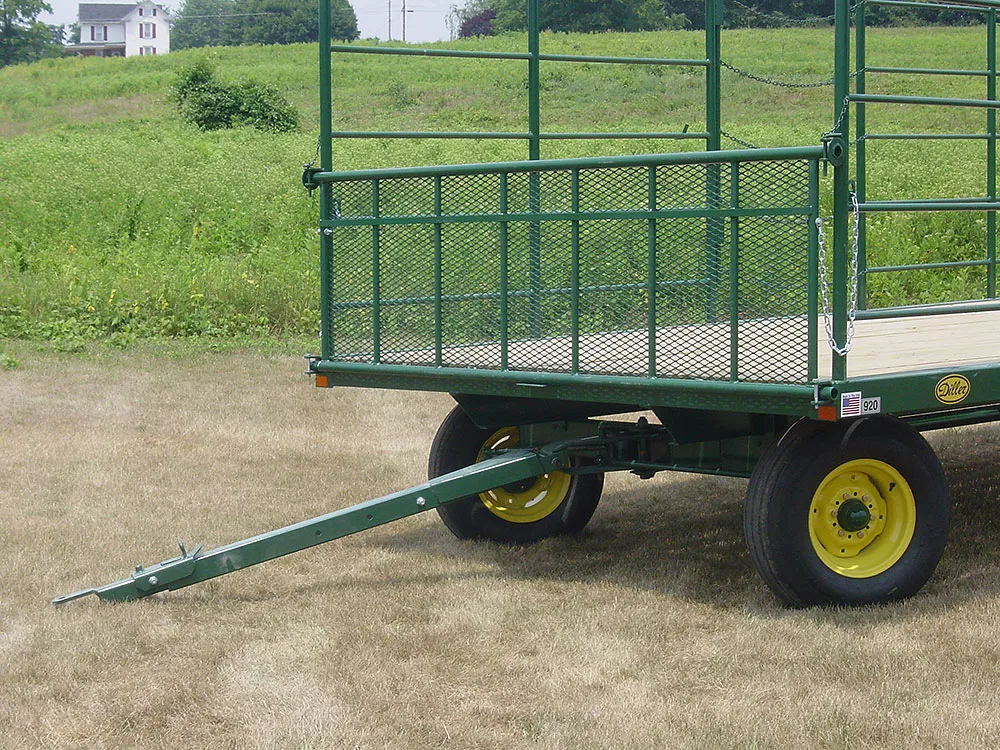

Fabricated from heavy-duty schedule 40 pipe with a 30″ drop front gate, full-width 270° swing rear gate, and a 45″ chain center gate opening on each side, for easy loading and unloading.
Smooth Operation
Exclusive bind-free latch design opens easily, even under pressure from a full load.
Sizes to Fit Your Farm
Available in 100″ or 108″ widths and 16′, 18′, 20′, or 24′ lengths.
Premium Finish
Acid-washed and then sprayed with polyurethane primer and a durable topcoat to resist against fading, chalking, and chipping.
The Diller Promise
For 40 years, Diller Bale Wagons have been the trusted choice of farmers who demand reliable, long-lasting equipment. You might find a cheaper wagon—but you won’t find a better-built one.
Ready to Get to Work?
Locate your nearest Diller dealer and see why customers across the Mid-Atlantic, New England, and beyond rely on Diller for equipment that stands the test of time.
