Diller Cattle Hay Feeder Wagon
Cattle Hay Feeder Wagons

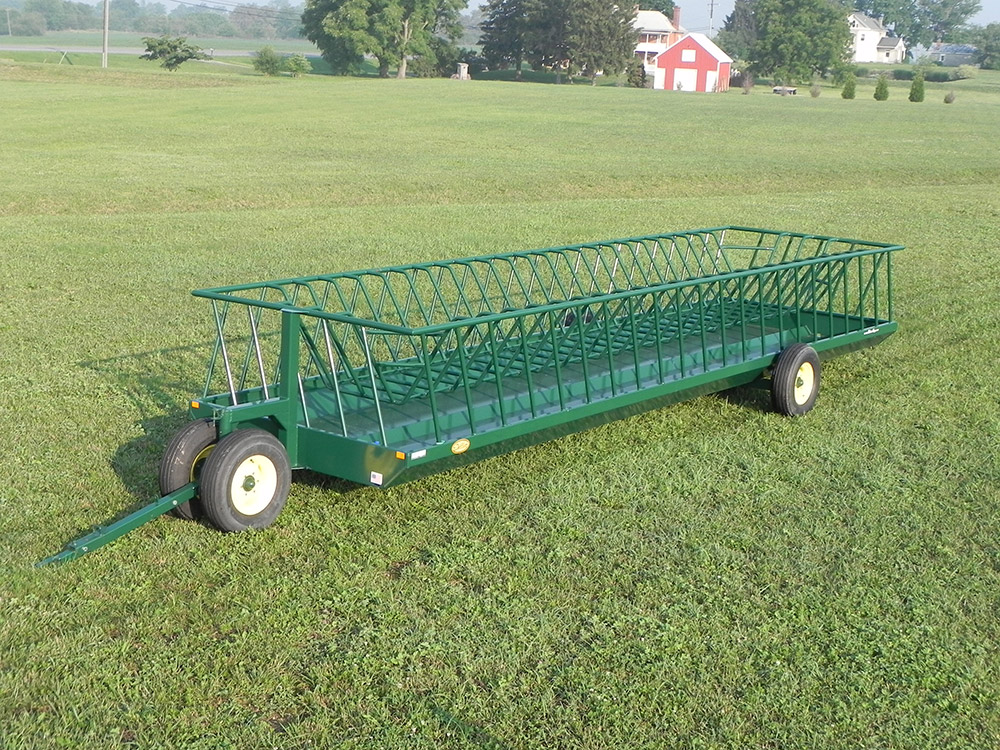

The Diller feeder wagon for large hay bales has evolved over the years to the heavy duty more purpose built design it is today. Our 8800 series hay feeder wagons are designed for quick transport and easy maneuverability. Lengths available on the Diller 8800 series wagon feeders are: 16', 20' 24' and 28'.

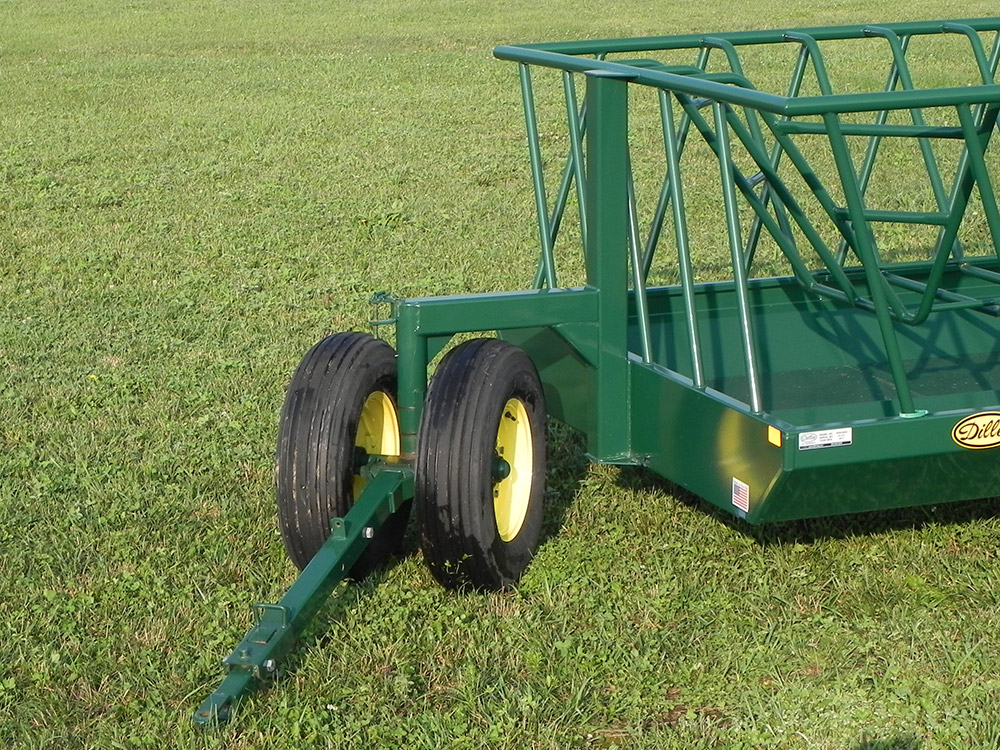

The 8800 series feeder wagons are based on an 88" widebody concept designed to catch hay that is often wasted as it falls to the ground. The body is formed from heavy 10 gauge sheet steel and a full length rib runs the centerline of the feeder giving it strength. Each feeder features a hay basket which holds the bale up off of the pan, allowing your cattle to have a second chance at any hay which is dropped. This feature greatly eliminates hay waste so that some of our customers say that hay waste is zero. The Diller hay saving basket is constructed of heavy duty schedule 40 pipe and can accommodate large round bales or large square bales. The dual wheeled front dolly gives the feeder wagon a tight turning radius allowing the feeders to be moved in and out of compact areas. The front dolly features an "Easy Hitch" pull out tongue and greasable bushings. Our feeder wagons utilize reinforced spindles with tapered roller bearings on all four wheels for safe on road towing. Completing the feeder are new ag wheels and tires that come standard rather than used truck tires.

The 8800 series large bale feeders are finished to look new and remain rust free for years. After fabrication, the entire feeder is acid washed to remove any oils, dirt or other contaminants that could prevent paint adhesion. A coat of epoxy primer forms the base of the finish and is topped off with a finish layer of PPG™ two-part polyurethane paint. Due to the "elastic" nature of polyurethane paint it provides a durable finish that resists fading, chalking and chipping unlike many other paints or powder coating.

After 26 years of service one of first cattle hay feeders Lynn Diller built is still in daily use less than a mile from our manufacturing facility. The Diller commitment to quality is the key to this product's longevity and that commitment to quality lives on today at Diller Ag Equipment. We have only raised the bar on quality and will continue to hold that standard to every feeder, wagon and running gear we put the Diller name on.

Standard Features

  • 10 Ga. Steel Bottom with Feed Divider and Reinforced Corners
  • Sch. 40 Pipe Racks and Basket
  • Hay Basket Design Eliminates Waste
  • 4 Drain Holes in Both Ends
  • 6 Lug 9.5Lx15 Tire & Wheel
  • Reinforced Axles
  • Easy Hitch - Pull Out Tongue

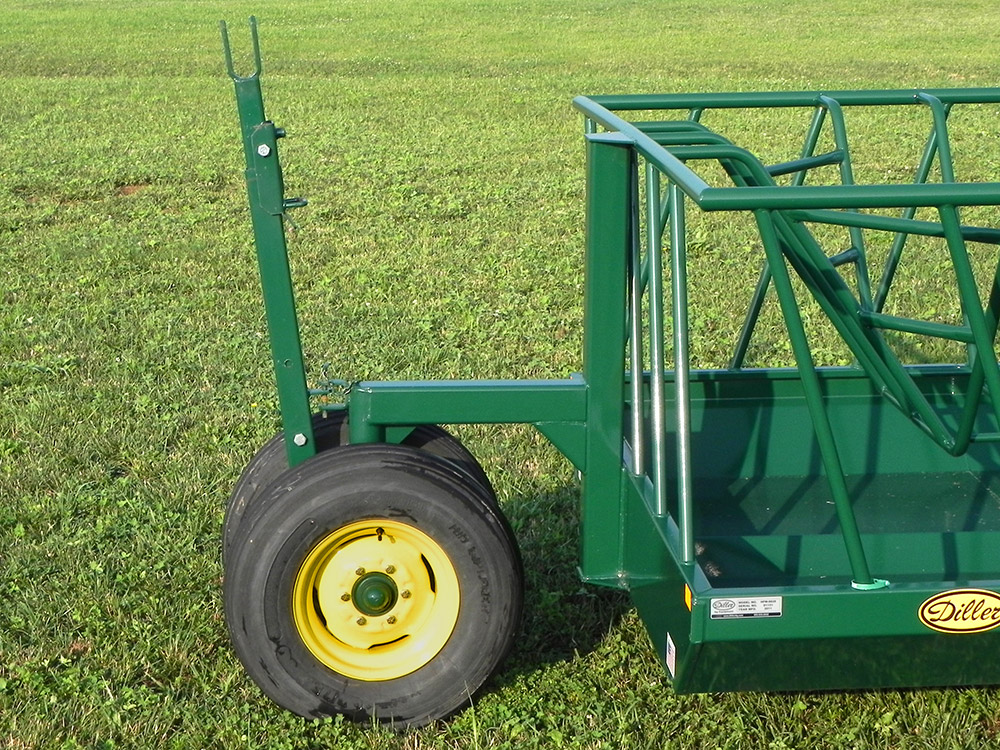

  • Tongue Stores in Upright Position
  • Epoxy Primer
  • Diller Green or Diller Red Polyurethane Paint
Diller 3 Year Warranty


Diller Ag offers a complete 3 year warranty on all products. This warranty covers all defects in material and workmanship and is effective from the date the end user takes delivery of their new unit. The obligation of this warranty shall be limited to repairing or replacing any part(s) that, in the opinion of Diller Ag, shall be proven defective in materials and/or workmanship under normal use and service.

Normal wear items are not covered by this warranty. Modification to the original design of the unit may void warranty. Warranty is valid only to the original owner.

Warranty claims must be made through an authorized Diller dealer. The dealer must call our warranty department for authorization for any warranty work to be performed. Failure to get prior authorization may result in unpaid claims.

Diller Ag reserves the right to modify, without notice, specifications and/or designs to their product without incurring any obligation to owners of previously sold product.

Cattle Hay Feeder Wagons Cattle Hay Feeder Wagons Cattle Hay Feeder Wagons Cattle Hay Feeder Wagons Cattle Hay Feeder Wagons


Model Width Length Type Bale Capacity Cattle Capacity
HFW-8812 88" 12' 4 WH 1 18-22
HFW-8816 88" 16' 4 WH 2 22-26
HFW-8820 88" 20' 4 WH 3 26-30
HFW-8824 88" 24' 4 WH 4 26-30
HFW-8828 88" 28' 4 WH 5 26-30
Download Printable PDF
