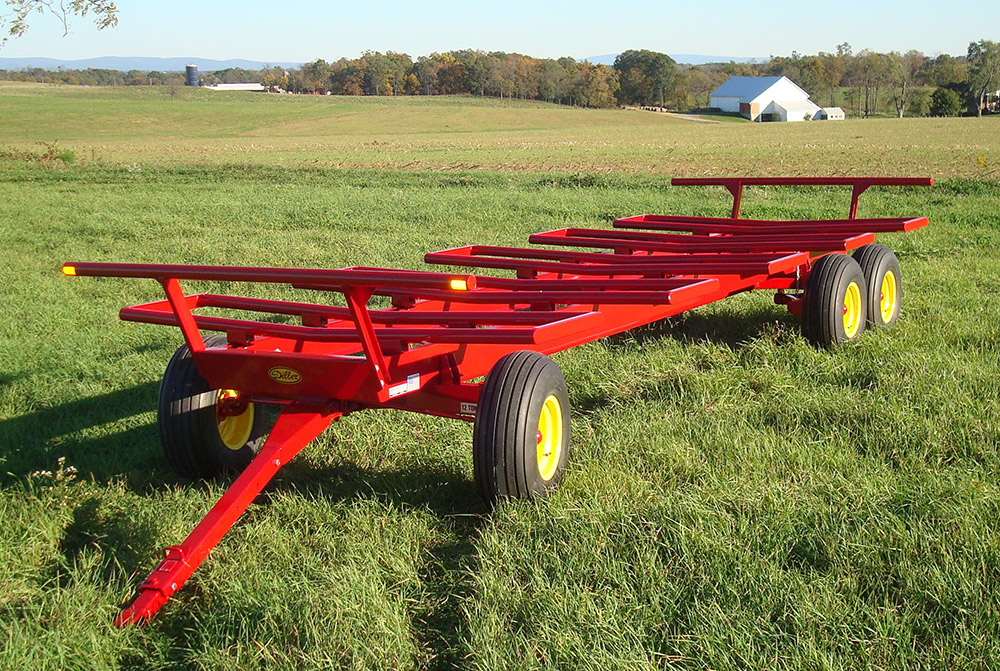

Round Bale Carrier

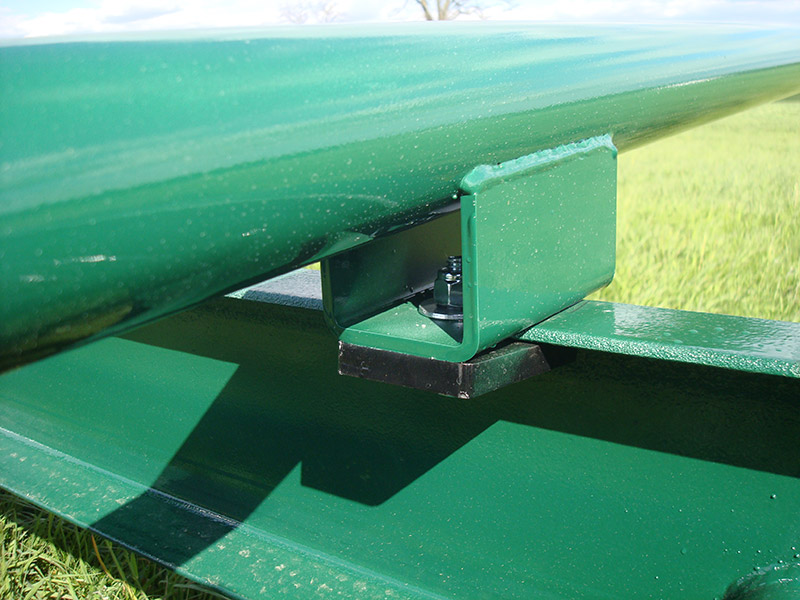

Every Diller Round Bale Carrier is ruggedly built to provide decades of reliable service moving your large round bales. The feature that separates the Diller round bale carrier from the competition is our fully adjustable crossmember system which allows the user to move each individual crossmember to accommodate round hay bales of different diameters. With our design it is possible to accommodate 4', 5' and even 6' round hay or silage bales.

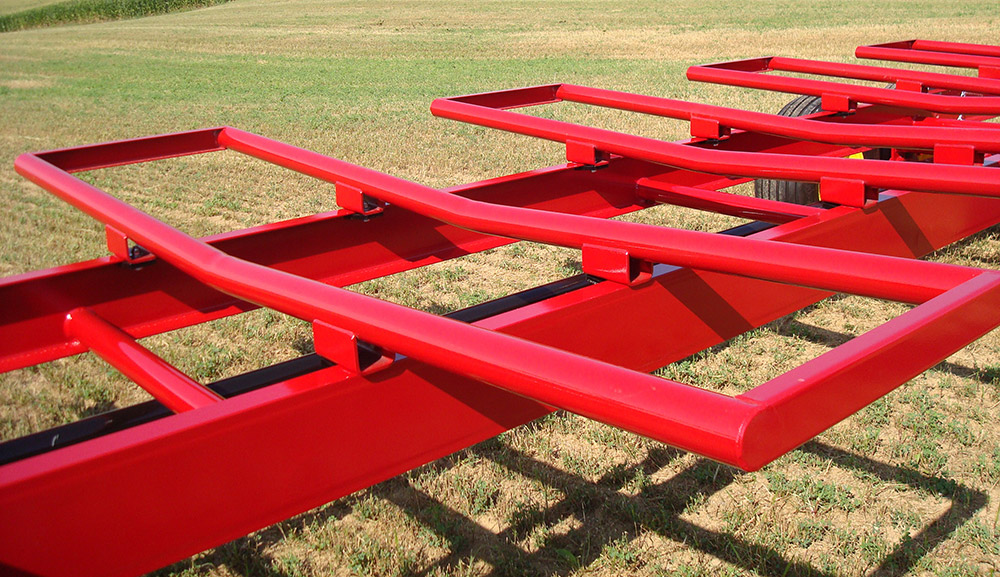

The foundation of every Diller round bale carrier is a heavy duty boxed frame built from structural steel channel (6", 8" or 10" depending on length). Diller round bale carriers are available in 16' to 30' lengths (in 2' increments). Bulkheads at the front and rear of every Diller bale carrier anchor the load and keep it from shifting when starting or stopping. Each adjustable crossmember is formed from industrial grade 3" OD Schedule 40 pipe and angled 5 degrees inward to keep the load centered and stable. The paired ends of each crossmember are capped together for increased strength and also double as a "catch" to make loading large round bales with a bale spear easier. An additional benefit of our carrier design is that large wrapped bales can be moved with little damage to the wrap because of the smooth pipe and individual cradling of each bale.

Finally, like every other piece of Diller Ag Equipment, the Diller round bale carrier is finished to look new for years. After fabrication, all the components are acid washed to remove any oils, dirt or other contaminants that could prevent paint adhesion. Then a coat of epoxy primer forms the base of the finish and is topped off with a finish layer of PPG™ two-part polyurethane paint. Due to the "elastic" nature of polyurethane paint it provides a durable finish that resists fading, chalking and chipping unlike many other finishes

Standard Features

  • All Steel Construction
  • 8' 6" Long Crossmembers
  • 3" O.D. Crossmember Pipe (Crossmembers Adjust to Accommodate Bale Size)
  • Inward Tilted Crossmembers for Load Stability
  • Bulkheads on Both Ends
  • Epoxy Primer
  • Diller Green or Red Polyurethane Paint


  • LED Ag Light Kit w/7Pin Plug
Diller 3 Year Warranty


Diller Ag offers a complete 3 year warranty on all products. This warranty covers all defects in material and workmanship and is effective from the date the end user takes delivery of their new unit. The obligation of this warranty shall be limited to repairing or replacing any part(s) that, in the opinion of Diller Ag, shall be proven defective in materials and/or workmanship under normal use and service.

Normal wear items are not covered by this warranty. Modification to the original design of the unit may void warranty. Warranty is valid only to the original owner.

Warranty claims must be made through an authorized Diller dealer. The dealer must call our warranty department for authorization for any warranty work to be performed. Failure to get prior authorization may result in unpaid claims.

Diller Ag reserves the right to modify, without notice, specifications and/or designs to their product without incurring any obligation to owners of previously sold product.

Diller round bale carrier Diller round bale carrierDiller round bale carrier Diller round bale carrier Diller round bale carrierDiller round bale carrier


Model Length Width Frame Crossmembers Capacity
(4' Bales)
(5' Bales)
(6' Bales)
BC-16 16' 102" C6x8.2# 4 11 or 14 8 or 10 5 or 6 *Chassis sold separately
BC-18 18' 102" C6x8.2# 4 11 or 14 8 or 10 8 or 10 *Chassis sold separately
BC-20 20' 102" C6x8.2# 5 14 or 18 11 or 14 8 or 10 *Chassis sold separately
BC-22 22' 102" C8x11.5# 5 14 or 18 11 or 14 8 or 10 *Chassis sold separately
BC-24 24' 102" C8x11.5# 5 17 or 22 14 or 18 11 or 14 *Chassis sold separately
BC-26 26' 102" C8x11.5# 6 17 or 22 14 or 18 11 or 14 *Chassis sold separately
BC-28 28' 102" C10x15.3# 6 20 or 26 17 or 22 14 or 18 *Chassis sold separately
